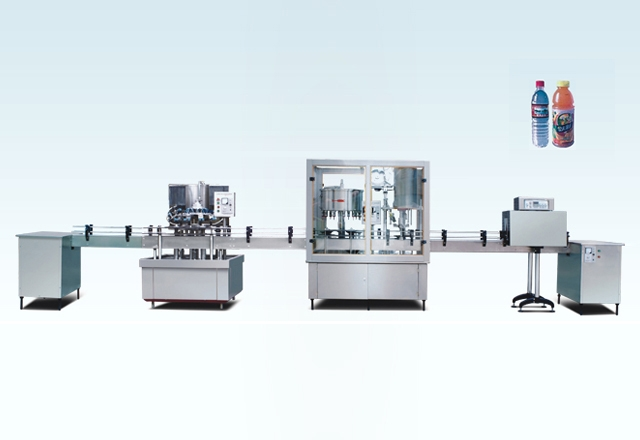

The line is composed of bottle washing, filling, capping and label shrinking machine, used for PET plastic bottles, glass bottles, can fill mineral water, fruit juice, soy sauce, wine and so on. Machine adopt very simple electric controller and very easy adjustment,suit for various types of bottles, It is the ideal production line for beverage makers.
Technical Data:
| Name&Model | ZPC-12 Washer | GC-12Filler | ZPC-12 Washer |
| Capacity | 2000-2500BPH | 1500-3000BPH | 2000BPH |
| Working Position | 12 | 12 | 1 |
| Volume of bottle | 200-1500ML | 200-1500ML | 350-1500ML |
| Power | 0.75Kw 220/380V | 0.75Kw 220/380V | 0.55Kw 220V |
| Dimension | 135x135x190CM | 175x115x200CM | 175x115x200CM |
| Weight | 800Kgs | 900Kgs | 900Kgs |
| Name&Model | BSL1535 Labeler | Conveyor |
| Capacity | 1500-2000BPH | 100-2500BPH |
| Working Position | ||
| Volume of bottle | 200-1500ML | |
| Power | 3.5KW 220/380V | 0.75KW 220/380V |
| Dimension | 105x60x80CM | 100x72x220CM |
| Weight | 80Kgs | 200Kgs |
