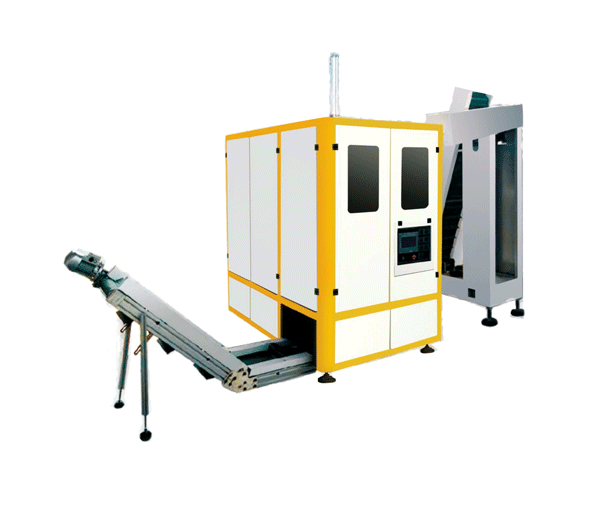

HZ-880B Fully Automatic Blow Moulding Machine

  • Product Description
  • Video
  • HZ-880B Fully Automatic Blow Moulding Machine
    characteristic:

    ●  Automatically arrange the preform into the preheater, bottle will drop out automatically from mould.
    ●  Adopting high technology Micro PLC controller. Ensure the machine working properly and stable.
    ●  Preheater use single unit rotation heating design, preform heating center distance smaller, heating speed more faster, compare to old design with double unit rotation heating design, Electricity save 25%.
    ●  Special mould locking system enables faster mould locking while saves the source a lot.
    Suitable for Co2 bottle, mineral water bottle, pharmaceutical bottle, oil bottle, cosmetic bottle, hot filling bottle.


    ITEM   HZ-880B
    1出3
    Material / PET
    Volume L 0.05-1.5
    Theoritical output Pcs/h 2000-2500
    Neck size mm 25—38
    Power KW 15
    Voltage/Frequency(3 phase) V/HZ 220-380V / 50-60HZ
    Working pressure
    0.8—1.0
    Blowing pressure MPa 3.0
    Main body dimension(LxWxH) M 2.0x1.2x2.1
    Main body weight T 1.2
    Conveyor dimension(LxWxH) M 1.5x0.85x2.2
    Conveyor weight T 0.5
