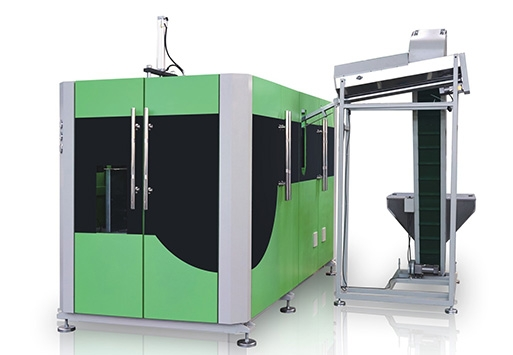

HZ-4500S FULLY AUTOMATIC BLOW MOULDING MACHINE
characteristic：
Big mould capacity: max bottle size is 2L for 4 cavity machine； Energy-efficient: preforms are hanging-heated, decreased consumption of the electricity； High-speed: shorter center distance of preforms made blowing speed higher； High-standard components: Germany/American pneumatic components are adopted； Convenient: push type mould installation made moulds changing faster； Precise: parts are manufactured by CNC to ensure the preciseness of every part；
| Model No | HZ-4500S | HZ-5500 | HZ-7000 | HZ-12000 | |
|
No.of cav |
Cavity |
4 | 4 | 6 | 8 |
| Theoritical Output | Pcs/h | 4500 | 5500 | 7500 | 12000 |
| Max.container volume | L | 2 | 2 | 1.5 | 1.5 |
| Max.neck diameter | mm | 38 | 38 | 38 | 38 |
| Max.container diameter | mm | 115 | 115 | 105 | 105 |
| Max.container height | mm | 325 | 325 | 340 | 340 |
| Heating power | KW | 25 | 25 | 45 | 50 |
| Operating low pressuer | Mpa | 0.8 | 0.8 | 0.8 | 0.8 |
| Blowing pressure | Mpa | 3.5 | 3.5 | 3.5 | 3.5 |
| Machine dimension | m | 3.9x1.8x2.7 | 3.9x1.9x2.7 | 4.5x2.1x2.7 | 6.3x2.2x2.7 |
| Machine weight | Kg | 4200 | 4500 | 5500 | 7000 |
| Conveyor dimension (L x W x H) |
M | 1.5x0.85x2.2 | 1.5x0.85x2.2 | 5.3 x 1.9 x 2.7 | 2.8x2.6x2.7 |
| Conveyor weight | Kg | 500 | 500 | 700 | 700 |
