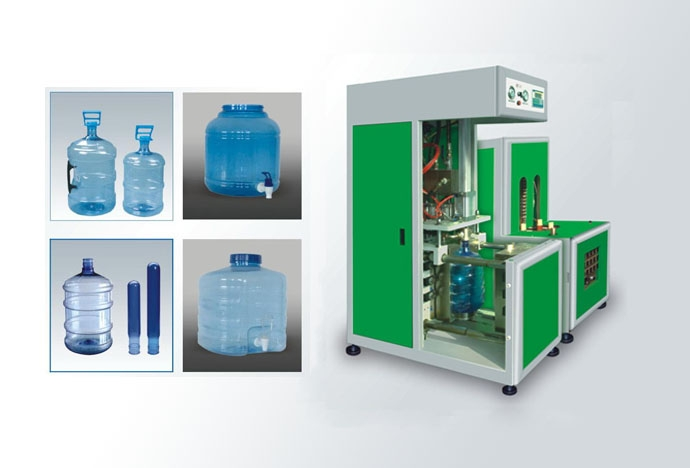

HZ-90 5-Gallon Semi Automatic Blow Moulding Machine
| characteristic： Suitable to make 3 gallon, 5 gallon, wide neck pure water gallon and PMMA lamps |
| Parameter： |
| ITEM | 1出1 | |
| Material | / | PET / PMMA |
| Volume | L | 10—25 |
| Theoritical output | Pcs/h | 70—100 |
| Neck size | mm | 50—100 |
| Max.length | mm | 450 |
| Clamping force | KN | 300 |
| Power | KW | 30 |
| Voltage/Frequency | V/HZ | 220-380V / 50-60HZ |
| Working pressure | MPa | 0.8—1.0 |
| Blowing pressure | MPa | 3.0 |
| Chilled water rate | L/min | 20 |
| Main body dimension(LxWxH) | M | 2.1 x 0.95 x 2.15 |
| Main body weight | T | 1.5 |
| Pre-heater dimension(LxWxH) | M | 2.65 x 0.78 x 1.8 |
| Pre-heater weight | T | 0.8 |
