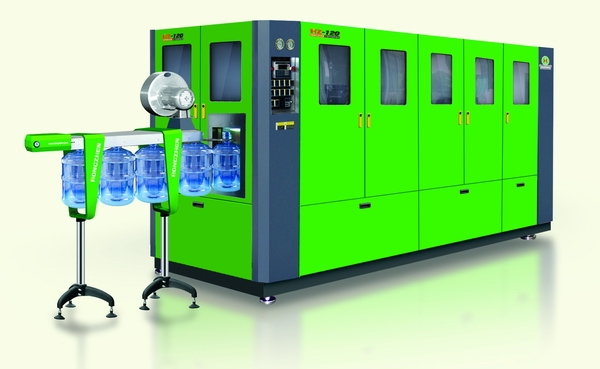

HZ-120 5-gallon Automatic blow mouding machine
| characteristic： Saving the investment on the ordering-bottle machine.Adopting high technology Mincro PLC controller. Ensure the machine working properly and stable. Preheater use single unit rotation heating design.preform heating center distance smaller, heatingspeed more faster,compare to old design with double unit rotation heating design . Electricity save 30% Special mould locking system enables faster mould locking while saves the air source a lot. |
| parameter： |
|
ITEM |
|
1出1 |
| Material | / | PET |
| Volume | L | 10—25 |
| Theoritical output | Pcs/h | 100—120 |
| Neck size | mm | 50—60 |
| Max.length | mm | 450 |
| Clamping force | KN | 500 |
| Power | KW | 45 |
| Voltage/Frequency | V/HZ | 220-380V / 50-60HZ |
| Working pressure | MPa | 0.8—1.0 |
| Blowing pressure | MPa | 3.0 |
| Chilled water rate | L/min | 20 |
| Main body dimension(LxWxH) | M | 3.7 x 1.6 x 2.2 |
| Main body weight | T | 3.5 |
