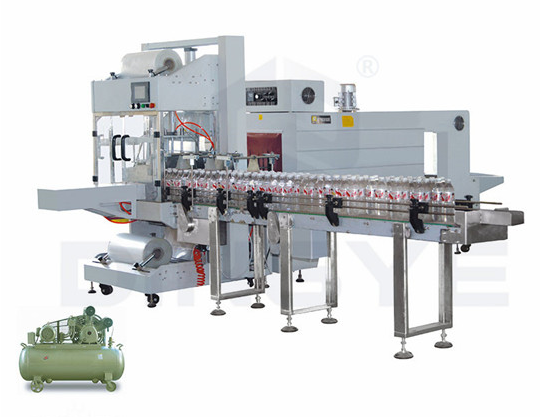

QSJ5040A Sleeve wrapper packaging machine

  • Product Description
  • Video
  • Details:
    QSJ-5040A is suitable for wrapping products such as pop-cans and bottles, etc,it works with PE shrink tunnels.
    Characteristic:
    1.The Machine adopts the advanced touch screen system for man-machine conversation, ‘Omron’ programmable logic controller (PLC), ‘AirTAC’ air-jar, and all the rest parts adopt international famous brand.
    2.Up and down magnetic switch prevent sealing mistakes, and protect the operators.
    3. Intelligent temperature controller performs stable.
    4.Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
    5.Up and down large power fan system ensures the excellent effect of shrinking in one time.
    6.Super cooling system cools the packing and makes the figuration perfectly.
    Specification

    Model QSJ-5040A Model BSE5040A
    Voltage 3phase 220V/380V, 50-60HZ Power supply 3phase 220V/380-460V 50-60HZ
    Power 3KW Heater power 20KW Adjuster
    Capacity 0 - 10pcs/minute Conveyer speed 0-10m/minute
    Working air pressure 0.4-0.6Mpa Tunnel size(L*W*H) 1500*500*460mm
    Width/thickness of the film Max. 590mm/0.03 - 0.25mm Conveyer loading 30KGS MAX.
    Max. packing dimension(L*W*H) 450*300*350mm Machine size(L*W*H) 2500*820*1680mm
    Min. packing dimension(L*W*H) 250*50*100mm Machine weight 470KGS
    Machine size(L*W*H) 1,060*1,600*1,930mm Shrink film PE,POF,PVC,PP
    Machine weight 370kg
