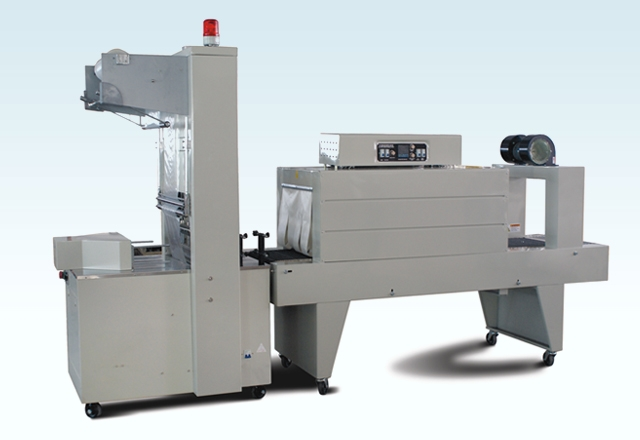

BZJ5038B Semi-automatic sleeve wrapper packing machine

  • Product Description
  • Video
  • Details:
    Summarize:
    BZJ5038 series sleeve wrapper is suitable for wrapping pop-cans, bottles etc.It works with PE shrink tunnels.
    The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.
    Characteristic:
    1.Up and down magnetic switch prevent sealing mistakes, and protect the operators.
    2.The input position is adjustable, base on the size of products packaged.
    3.Intelligent temperature controller performs stable.
    4.Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
    5.Up and down large power fan system ensures the excellent effect of shrinking in one time.
    6.Super cooling system cools the packing and makes the figuration perfectly.
    7.The size of tunnel can be customized as your request.
    Specification

    Model BZJ-5038B(Pneumatic) Model BSE5040A
    Power supply 220-240V, 50-60Hz;1.8KW Power supply 3phase 220V/380-460V 50-60HZ
    Capacity 0-6packing/minute Heater power 20KW Adjuster
    Sealing time/shrink time 0.5-1.5s, 0-0.6s Conveyer speed 0-10m/minute
    Conveyor loading 25kg Tunnel size(L*W*H) 1500*500*460mm
    Film width Max. 500mm Conveyer loading 30KG MAX.
    Film thickness 0.03-0.25mm Shrink film PE,POF,PVC,PP
    Max. packing dimension(L*W*H) 450 x 270 x 350mm Machine weight 470KGS
    Min. packing dimension(L*W*H) 250 x 60 x 60mm Machine size 2500*820*1680mm
    Machine size(L*W*H) 1020 x 830 x 1980mm
