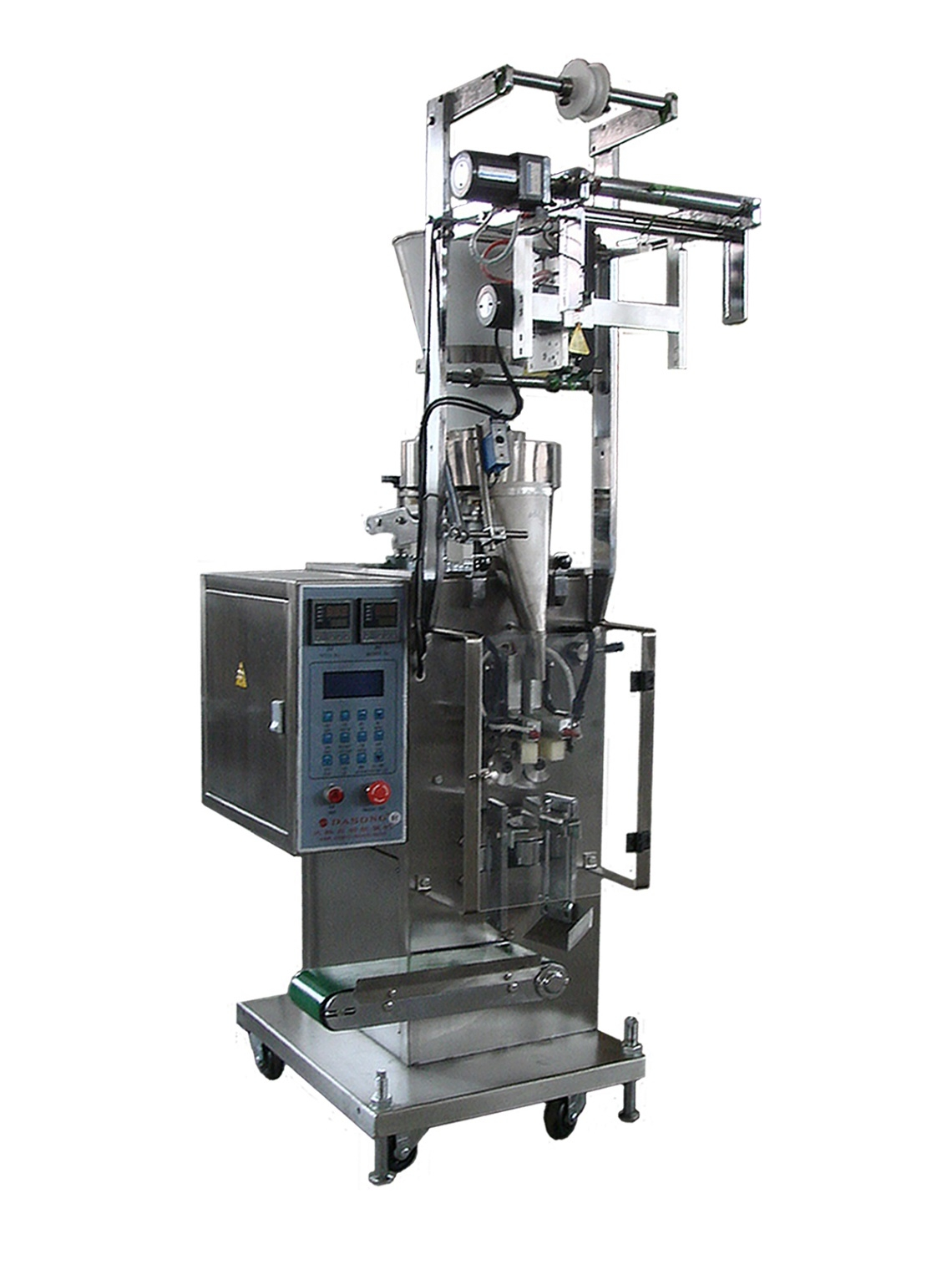

DXDK80CH automatic sachet packaging machine machine can do granule material packing in the small sachet
The process of measuring, bag-making, filling, sealing, printing and cutting can be done automatically.
Packaging Material:
Various Laminate Film, for example: Polypropylene / Polythene, Polyester/Aluminum foil/Polythene, Polyester/Aluminum-plating/Polythene, Nylon/ Polythene，Polyester/Polythene, etc.
| SPECIFICATIONS FOR DXDK80CH GRANULE PACKAGING MACHINE | |||
| DOSING SYSTEM |
filling capacity | ml | 1-50 |
| filling accuracy | ±% | 3 | |
| cups numbers | pair | 6 | |
| forming sealing and cutting |
bag size (length*width) | mm | (50-120)*(40-85) |
| speed | bag/pieces | 50-80 | |
| seam type | design | grid or beeline | |
| option |
machine body | material | painting or stainless |
| date coding | type | ribbon or embassying | |
| sealing size | design | 3 or 4 | |
1. Adopts CPU to control each function states, and setup the man-machine conversation interface.
2. The Double channel temperature of the horizontal and vertical is controlled by intelligent temperature controlling
device.
3. Intelligent photo cell orientation, transform discretionarily between the light/shade. Strongly anti-jamming, when
two bags can’t catch up with the upper mark the machine will stop and give an alarm.
4. The packaging speed can be adjusted continuously within specified range. Orientation open mouth and stop.
5. The bag-making has high precision. Easily Operation and maintain.
6. Measurement adopts adjustable cup method, which is accorded with the national measurement standard.
