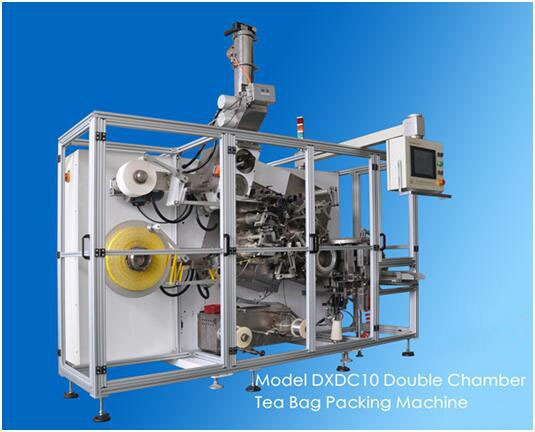

The machine DXDC10 is a kind of automatic double chamber tea bag machine for the packing tea and similar herbs. It makes double chamber teabags which are cold-sealed. The machine links up hard label and thread with staple, and the teabags are pushed out and packed into box manually after counting. The packing materials are non-heatseal filter paper, label, thread and staple.

Technical data:
Output: 120±10 (bag/min)
Bag Capacity: Max. 10cm3(adjustable)
Degree of accuracy:±5%
Bag dimensions: 45mm×60mm or 40mm×60mm
Tag dimensions: 28mm×32mm (hard tag)
Length of thread: 148mm±5mm
Size of staple:13mm (5mm after folding)
Volume of hopper: 13dm3
Power supply: 3 phases, 380V, 50HZ
Power: total power 10KW, max. power 8kw
Net weight: 4000KG
Gross weight: 4250KG
Dosage system: protection structure which keeps impurity away
Compressed air: 6atm(bar)/300L/min
Overall size: 3.5m(L)×1.5m(W)×2.4m(H)
●It has necessary protection measures, such as short circuit protection, overloading protection, creepage protection, etc.
●The complete machine is controlled and coordinated by PLC.
●It is simple to set and control the temperature of all heating parts.
●It is simple to set the counting number of output chute and control the packing of boxes.
●It will give alarm if thread or packing materials are absent.
●It has the counting function of batch quantity. And it is easy to return the number to “zero”.
●The square marks of envelope paper are identified to keep the traction and cutting of fixed-length.
●The square marks of tag paper are identified to keep the traction and cutting of fixed-length.
●It has the function of jog on machine.
●It has 2 emergency buttons to stop the machine if emergency happens.
